MyApache ModSecurity Configuration ​

ℹ️ Conditional navigation - this page is listed in the MyApache navigation group only when the ModSecurity module is enabled and at least one MyApache profile exists; otherwise it is reachable only by its direct URL.

The MyApache ModSecurity Configuration page allows administrators to configure ModSecurity, a powerful web application firewall (WAF) integrated with Apache. This interface provides full control over rule enforcement, connection handling, logging behavior, performance tuning, and external data integration.

Overview ​

ModSecurity helps detect and block common web exploits and threats in real time. This page offers a structured and modular approach to manage:

  • WAF activation and rule processing
  • Logging and auditing
  • Resource and performance tuning
  • External threat data integration

URL: /admin/my-apache-mod-security-config

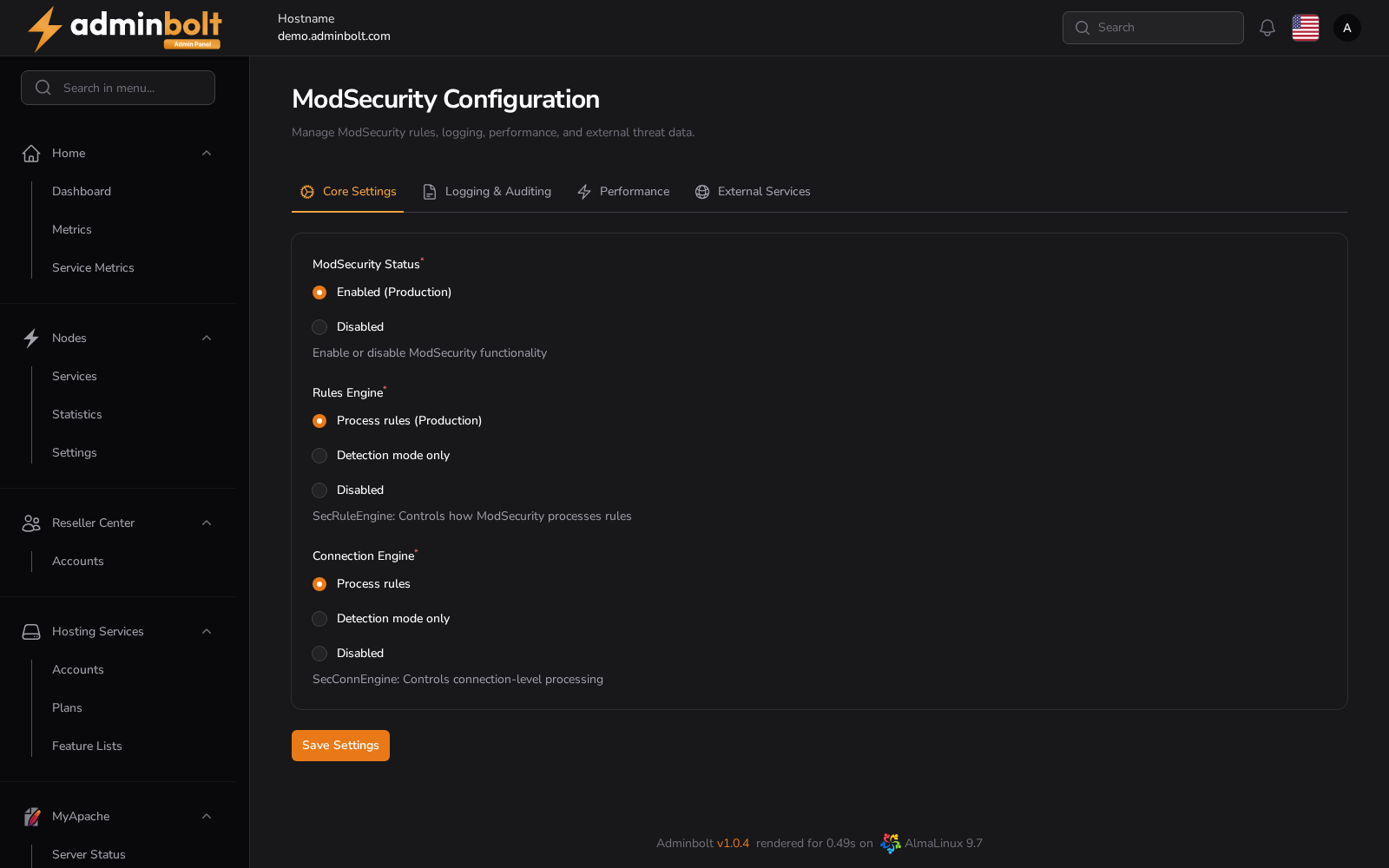

Core Settings ​

Core Settings

ModSecurity Status ​

  • Enabled (Production) - Activates ModSecurity globally.
  • Disabled - Turns off all ModSecurity processing.

Rules Engine ​

  • Process rules (Production) - Full rule evaluation and enforcement.
  • Detection mode only - Rules are processed but not enforced (log only).
  • Disabled - Rule engine is completely turned off.

Connection Engine ​

  • Process rules - Applies rules at the connection level.
  • Detection mode only - Logs matching rules without enforcement.
  • Disabled - Disables connection-level processing.

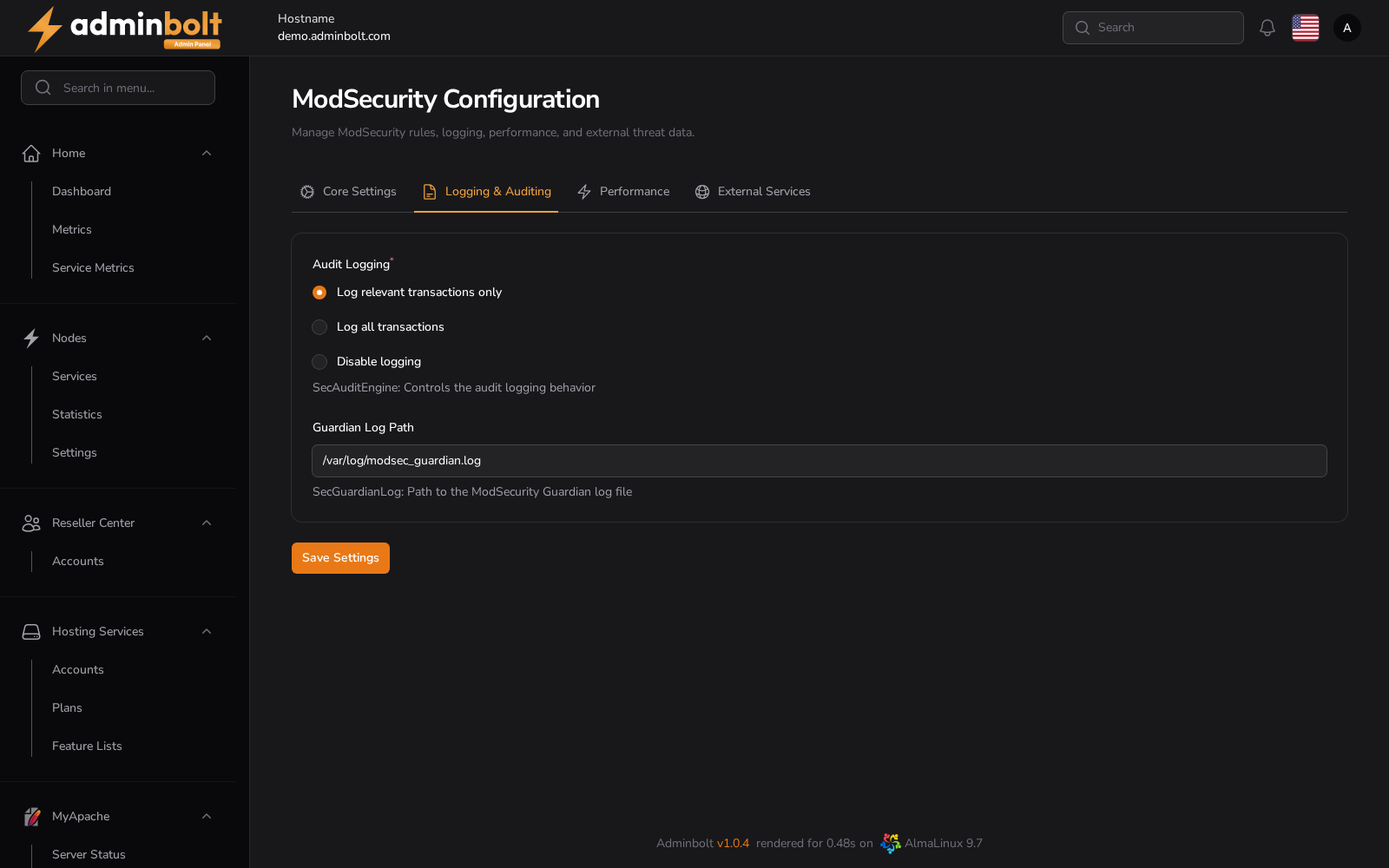

Logging & Auditing ​

Logging & Auditing

Audit Logging ​

  • Log relevant transactions only - Logs only suspicious/matching requests.
  • Log all transactions - Logs all HTTP traffic.
  • Disable logging - Disables logging entirely.

Guardian Log Path ​

  • Default: /var/log/modsec_guardian.log
  • Stores audit logs for ModSecurity’s Guardian integration.

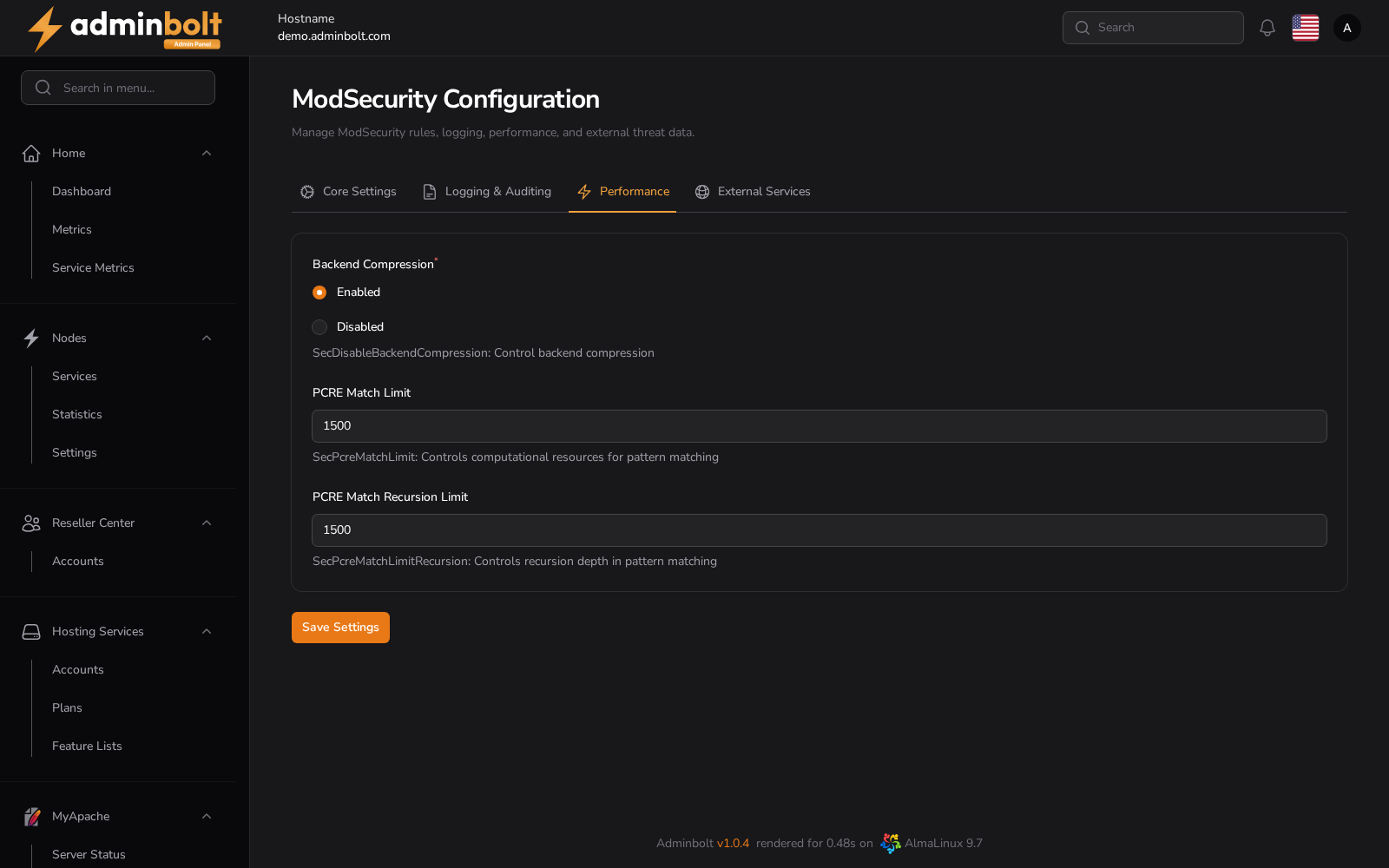

Performance ​

Performance

Backend Compression ​

  • Enabled - Enables compression for backend data transfer.
  • Disabled - Disables backend compression.

PCRE Match Limit ​

  • Default: 1500
  • Controls the maximum number of pattern matches processed.

PCRE Match Recursion Limit ​

  • Default: 1500
  • Controls recursion depth for pattern matching.

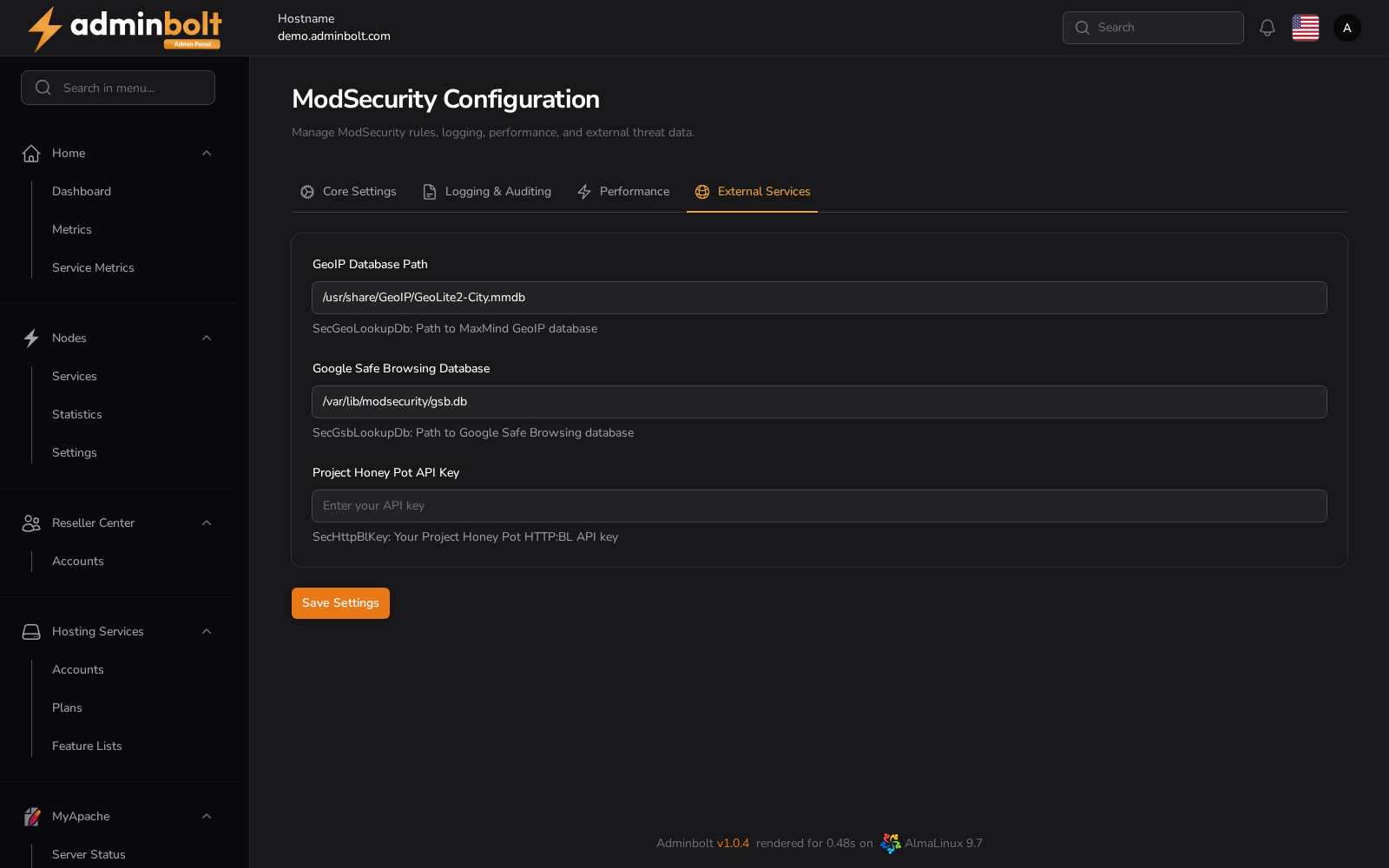

External Services ​

External Services

GeoIP Database Path ​

  • Default: /usr/share/GeoIP/GeoLite2-City.mmdb
  • Used for geolocation-based rule evaluation.

Google Safe Browsing Database ​

  • Path: /var/lib/modsecurity/gsb.db
  • Protects against malicious URLs and phishing domains.

Project Honey Pot API Key ​

  • Optional integration for real-time spammer and bot detection.
  • Requires a valid HTTP:BL API key.

Saving Changes ​

Use the Save Settings button to persist configuration changes.
