Fail2Ban

Fail2Ban provides automated protection against brute-force attacks by monitoring system logs and temporarily banning IP addresses that show malicious behavior.

Whitelist IPs Overview

URL: /admin/fail2ban/whitelist-ips

Interface Elements

Navigation Bar

• Fail2Ban: Main security section
• Whitelist IPs: Currently selected
• List view: Active view

Top Bar

• New Whitelist IP button: Add IP addresses to whitelist

Management Tabs

• Whitelist IPs: Configure trusted IP addresses (current tab)
• Banned IPs: View and manage banned addresses
• Fail2Ban Settings: Configure global settings

Empty State

• Displays "No Whitelist IPs" when no entries exist
• Clean interface for immediate action

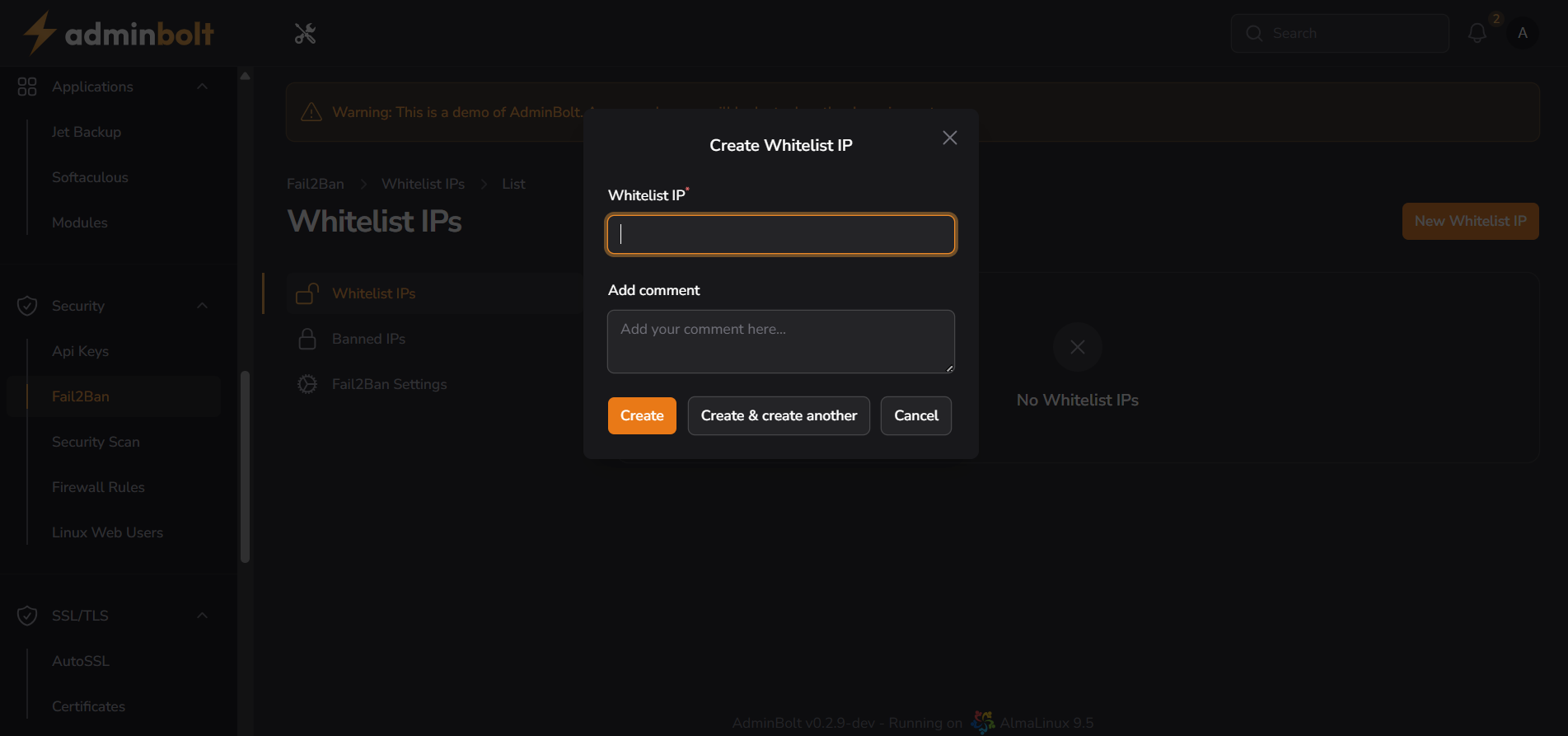

Creating Whitelist IP

URL: /admin/fail2ban/whitelist-ips/create

Whitelist IP Configuration

1. Whitelist IP Field

   • Enter IP address to whitelist
   • Supports single IP addresses
   • Required field for creation

2. Add Comment Section

   • Optional description field
   • Document purpose or reason
   • Helps maintain organization

Action Buttons

• Create: Save whitelist entry
• Create & create another: Quick successive entries
• Cancel: Abort operation

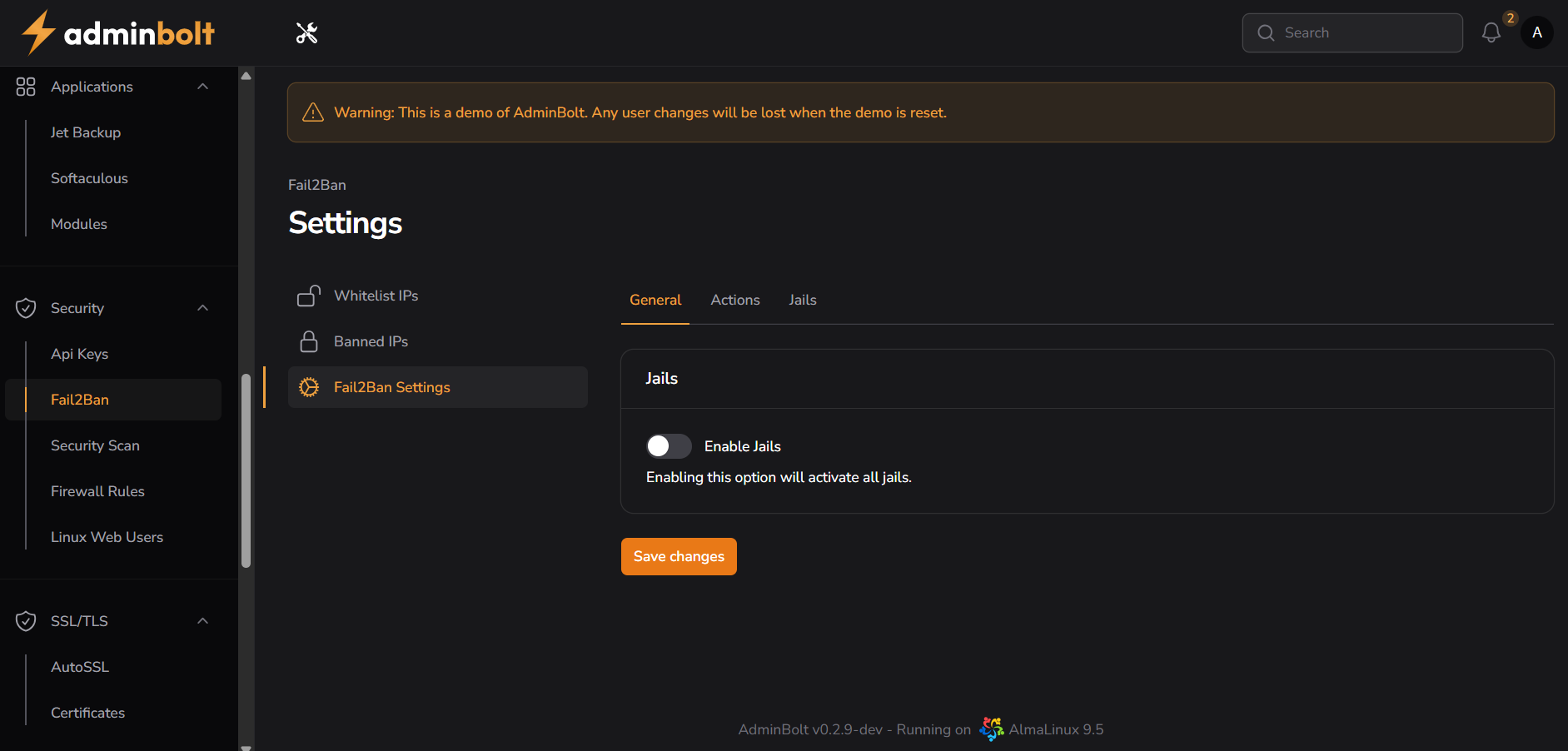

Fail2Ban Settings

URL: /admin/fail2ban/settings

Settings Tabs

General Tab

Enable Jails

• Toggle to activate all jails globally
• Description: "Enabling this option will activate all jails."

Save Changes Button

• Applies all modifications

Actions Tab

Report Actions

1. Destination Email

   • Email address for notifications
   • Format: Default null
   • Description: "This is the email address where notifications will be sent based on the configurations in the jail (conf.local.d/*) files."

2. Sender

   • Email sender configuration
   • Format: Default null
   • Description: "The sender email address is used specifically for certain actions in the configuration files to define who the notifications come from."

3. MTA (Mail Transfer Agent)

   • Dropdown selection
   • Options: Select mail system
   • Description: "Specify the email sending method for Fail2Ban: use sendmail for the default option, or switch to mail to use a traditional email system."

4. Protocol

   • Communication protocol selection
   • Options: Various protocols available
   • Description: "Specify the communication protocol used by Fail2Ban for its actions: by default, it uses TCP for reliable data transmission."

5. Port

   • Network port configuration
   • Default: 0-65535
   • Description: "Specify the range of ports to be banned, which is generally set individually for each specific jail. By default, it covers all ports from 0 to 65535."

6. Ban Action

   • Default action configuration
   • Dropdown selection
   • Description: "Sets the default action for banning, which can be customized globally or for individual sections in the jail.local file."

Save Changes Button

• Applies all action configurations

Jails Tab

Available Jails

1. SSHD Jail

   • Toggle for SSH protection
   • Description: "Turning on this option will activate the SSHD jail, which helps protect your SSH service from unauthorized access."

2. Apache Jail

   • Toggle for Apache protection
   • Description: "Turning on this option will activate the Apache jail, which helps protect your Apache server from unauthorized access and malicious activity."

3. vsFTPD Jail

   • Toggle for FTP protection
   • Description: "Turning on this option will activate the vsFTPD jail, which helps protect your vFTPD server from unauthorized access and malicious activity."

Save Changes Button

• Applies all jail configurations

Feature Structure

Navigation Hierarchy

• Security → Fail2Ban → Whitelist IPs/Banned IPs/Settings
• Logical organization for security features
• Easy access from main navigation

Settings Management

1. General Settings

   • Global jail activation
   • System-wide configurations

2. Action Configuration

   • Email notification setup
   • Protocol specifications
   • Ban action parameters

3. Jail Management

   • Service-specific protection
   • Independent toggle controls
   • Customizable security layers

Best Practices

Configuration Management

• Start with default settings
• Enable jails for active services
• Configure email notifications
• Test configurations thoroughly
• Document all changes

Security Considerations

• Monitor ban patterns
• Adjust thresholds based on attacks
• Keep whitelist minimal
• Use comments for accountability
• Regular security audits

Email Configuration

• Use valid destination email
• Configure proper sender address
• Select appropriate MTA
• Test notification delivery
• Monitor email alerts

Troubleshooting

Common Issues

• Email notifications not working
• Jails not activating properly
• Configuration conflicts
• Port specification errors

Resolution Steps

1. Verify email settings
2. Check MTA configuration
3. Confirm jail status
4. Review system logs
5. Restart Fail2Ban service
6. Contact support if needed

Integration Points

Related Security Features

• Firewall Rules
• Security Scan
• API Keys
• Linux Web Users

System Dependencies

• Works alongside firewall
• Integrates with system logs
• Requires mail server for notifications
• Service-specific log monitoring

Monitoring and Maintenance

Regular Tasks

• Review active jails
• Check notification delivery
• Monitor false positives
• Update configurations
• Verify service protection

Reporting

• Track ban statistics
• Analyze attack patterns
• Document security incidents
• Generate compliance reports

System Requirements

Prerequisites

• Active AdminBolt subscription
• Security module enabled
• Mail server configured
• Proper permissions
• System log access

Technical Specifications

• Supports multiple services
• Email notification system
• Port range configuration
• Protocol selection options
• Real-time protection

Management Benefits

• Centralized security management
• Automated threat response
• Service-specific protection
• Flexible ban configurations
• Email notification system
• Whitelist and blacklist control
• Multi-service jail system
• Real-time log monitoring
