MyApache Settings

The MyApache Settings page in the AdminBolt admin panel lets you configure the Apache web server through a tabbed interface. Every server directive, security header, performance limit, SSL/TLS option, and loadable module is exposed as a control on this page.

Overview

URL: /admin/my-apache-settings

At the top of the page you will find:

• MyApache Profile - a dropdown to select the configuration profile (e.g. Default (my-apache)).
• Service status indicator - shows whether the MyApache service is running (green) or stopped (red).

The settings are organized into six tabs:

1. Server Configuration
2. Security & Performance
3. Timeouts & Performance
4. Request Limits
5. Logging Configuration
6. Modules Configuration

Some settings only apply when their related module is enabled. Within the Modules Configuration tab, enabling a module reveals its associated settings. To keep this reference readable, those module-specific settings (HTTP security headers, SSL/TLS, MaxMind/GeoIP, proxy, MIME, status, and user directories) are documented below in their own logical sections.

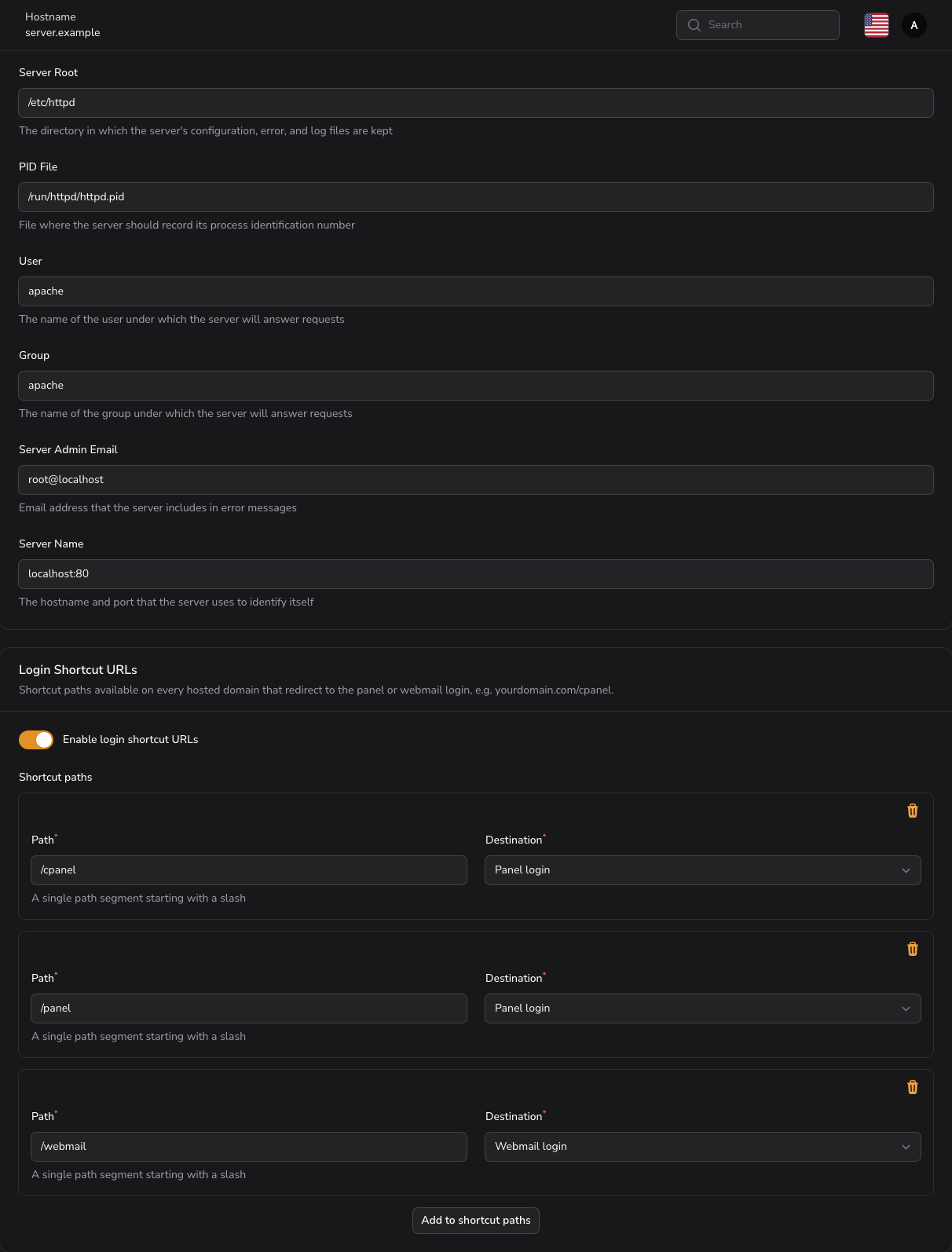

Server Configuration

Basic identity and process settings for the server.

Setting	Description
Server Root	The directory in which the server's configuration, error, and log files are kept.
PID File	File where the server should record its process identification number.
User	The name of the user under which the server will answer requests.
Group	The name of the group under which the server will answer requests.
Server Admin Email	Email address that the server includes in error messages.
Server Name	The hostname and port that the server uses to identify itself.

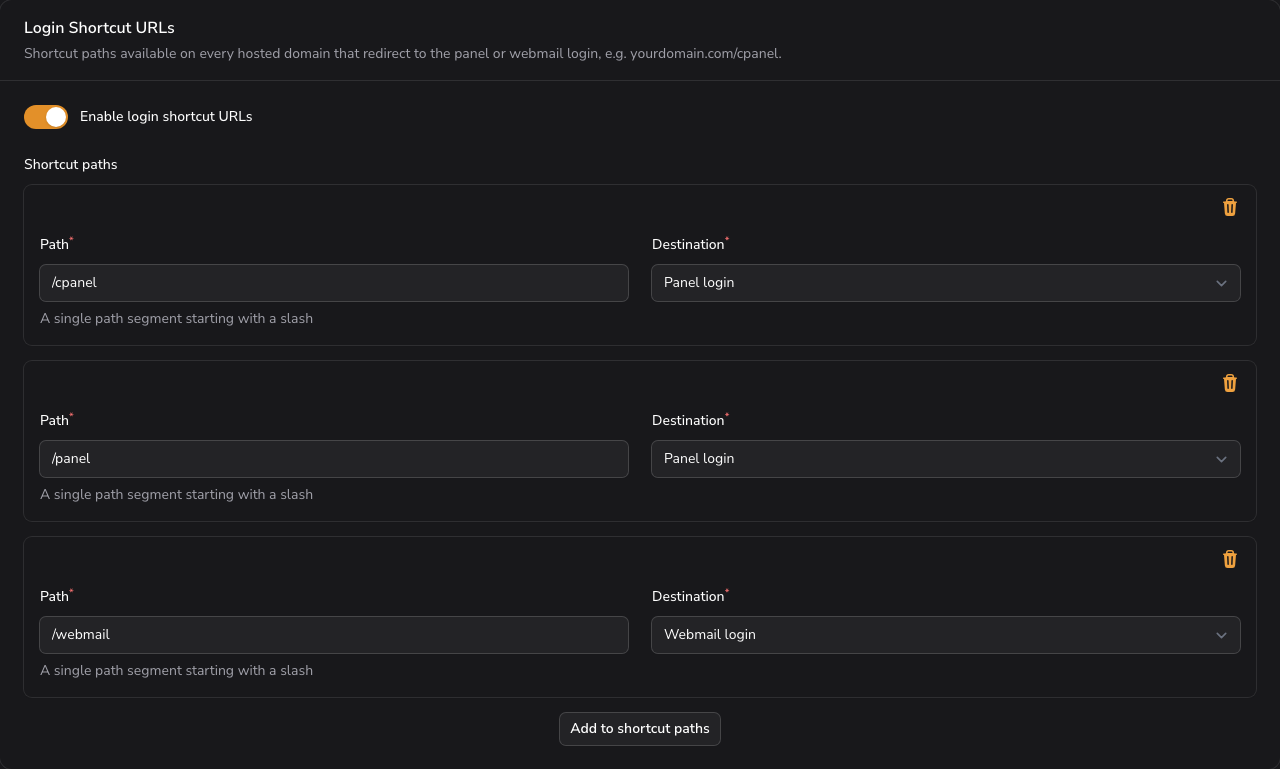

Login Shortcut URLs

Short paths that every hosted domain answers on and that redirect visitors to the panel or webmail login. They give your customers a memorable entry point such as yourdomain.example/cpanel instead of the full panel address and port. The section sits in the Server Configuration tab, below Basic Server Settings.

Setting	Description
Enable login shortcut URLs	Publishes the shortcuts across the server. Enabled by default, including on servers upgraded from an earlier release.
Shortcut paths	The list of paths to publish. Visible while the feature is enabled.

Each entry in Shortcut paths has two fields:

• Path (required) - a single path segment starting with a slash, for example /cpanel. Letters, digits, dots, underscores, and hyphens are accepted. Nested paths such as /login/panel are not.
• Destination (required) - Panel login or Webmail login.

Default shortcuts

A new server, and a server upgraded from a release without this feature, starts with three entries:

Path	Destination
/cpanel	Panel login
/panel	Panel login
/webmail	Webmail login

How the shortcuts behave

Shortcuts are published once for the whole server, so every hosted domain answers on them without per-domain setup. A request to a shortcut path returns a temporary redirect to the panel address. Rules your customers set in their own .htaccess files are not modified and keep working as before.

Destinations resolve against the current panel hostname every time the configuration is applied, so changing the server hostname moves the shortcuts with it on the next apply.

LiteSpeed Enterprise reads the same configuration, so the shortcuts behave identically on servers running either web server.

Reserved paths

Five paths are already claimed by the server and are rejected if you enter them: /autodiscover, /.well-known, /cgi-sys, /cgi-bin, and /_errors. A shortcut on any of them would break mail autodiscovery, SSL certificate validation, or CGI handling.

Restoring the defaults

Saving an empty list publishes no shortcuts at all; it does not fall back to the defaults. To bring the three default entries back, clear the list, turn Enable login shortcut URLs off, then turn it on again.

When a change does not take effect

Turning the feature off keeps your custom list, so re-enabling it restores what you had. If a saved path does not appear on your domains, check that it is a single segment starting with a slash and that it is not one of the reserved paths above.

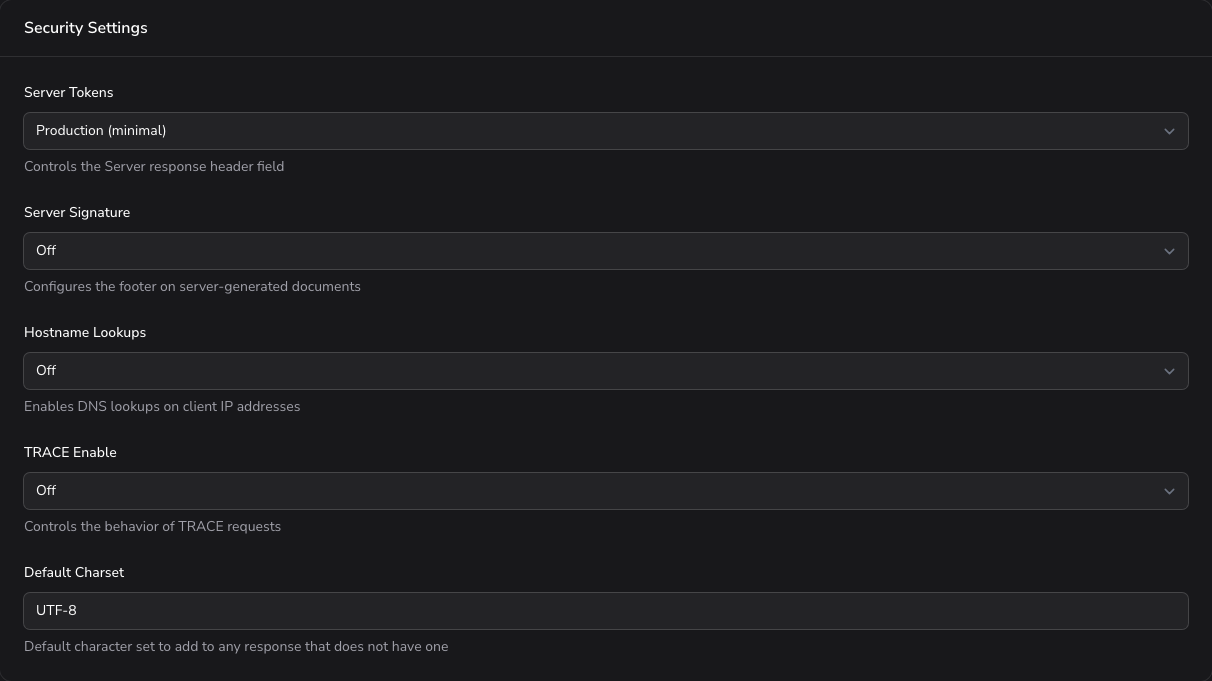

Security & Performance

General security hardening and response-handling settings.

Setting	Description	Options
Server Tokens	Controls the Server response header field.	Production (minimal), Major version only, Minor version, Minimal, OS and version, Full version info
Server Signature	Configures the footer on server-generated documents.	On, Off, Email
Hostname Lookups	Enables DNS lookups on client IP addresses.	On, Off, Double
TRACE Enable	Controls the behavior of TRACE requests.	On, Off, Extended
Default Charset	Default character set to add to any response that does not have one.	Free text
Enable Sendfile	Controls whether the kernel sendfile support is used.	On, Off
Index Options	Controls the display of directory listings.	Free text

HTTP Security Headers

Response headers that harden the browser-side security of served pages. These appear in the Modules Configuration tab alongside the HTTP headers module.

Setting	Description	Options
X-Frame-Options	Controls whether a browser can embed the page in a frame.	DENY, SAMEORIGIN, ALLOW-FROM
X-Content-Type-Options	Prevents MIME type sniffing.	nosniff
X-XSS-Protection	Enables XSS filtering in the browser.	Free text
Referrer Policy	Controls how much referrer information is included.	no-referrer, no-referrer-when-downgrade, origin, origin-when-cross-origin, same-origin, strict-origin, strict-origin-when-cross-origin, unsafe-url
Permissions Policy	Controls which browser features can be used.	Free text
Content Security Policy	Defines content security policy rules.	Free text

Recommended starting values

For most sites: X-Frame-Options SAMEORIGIN, X-Content-Type-Options nosniff, and Referrer Policy strict-origin-when-cross-origin. Add a Content Security Policy only after testing, since a strict policy can break pages; a permissive starting point is default-src 'self'. Turn on HSTS (the Strict-Transport-Security header) only once HTTPS works for the whole site.

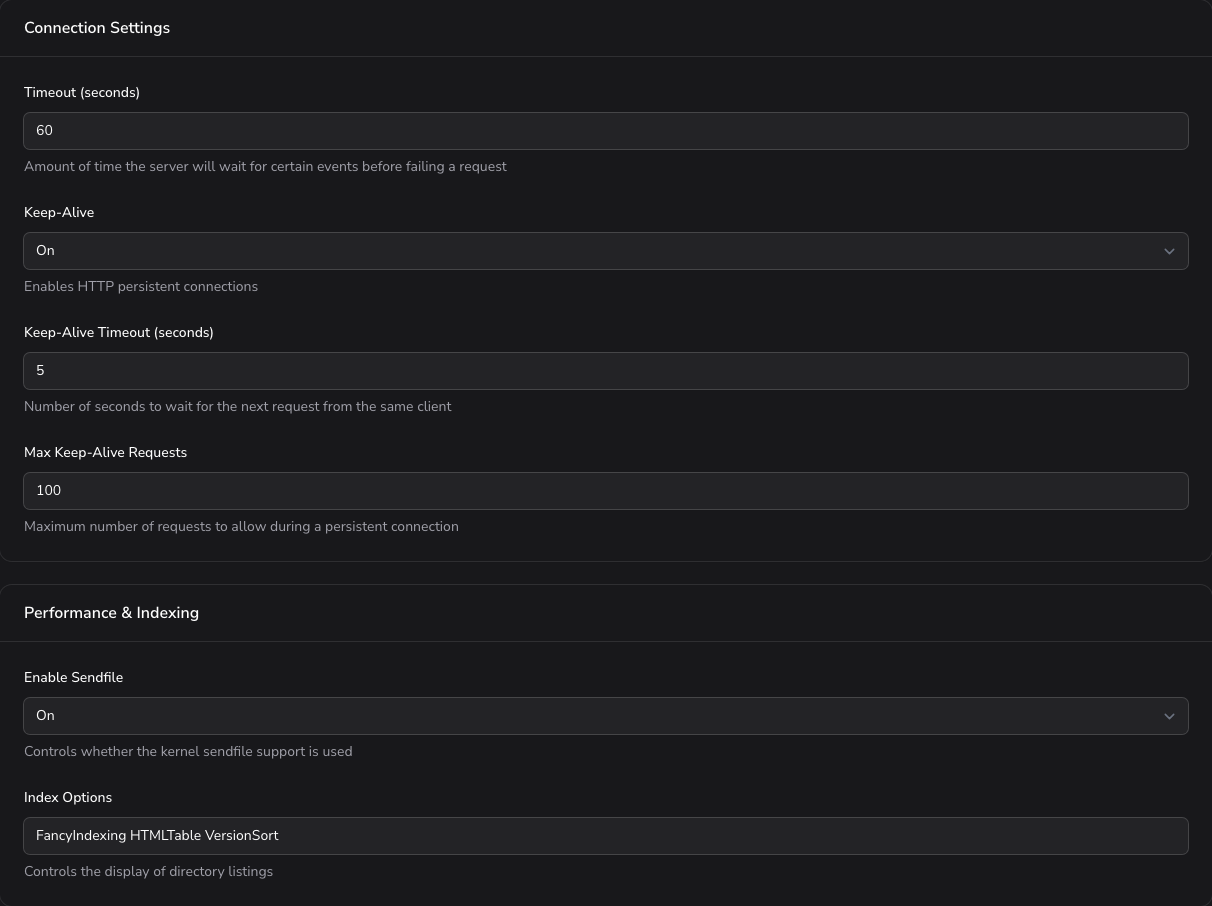

Timeouts & Performance

Connection timeout and keep-alive behavior.

Setting	Description	Options
Timeout (seconds)	Amount of time the server will wait for certain events before failing a request.	Numeric
Keep-Alive	Enables HTTP persistent connections.	On, Off
Keep-Alive Timeout (seconds)	Number of seconds to wait for the next request from the same client.	Numeric
Max Keep-Alive Requests	Maximum number of requests to allow during a persistent connection.	Numeric

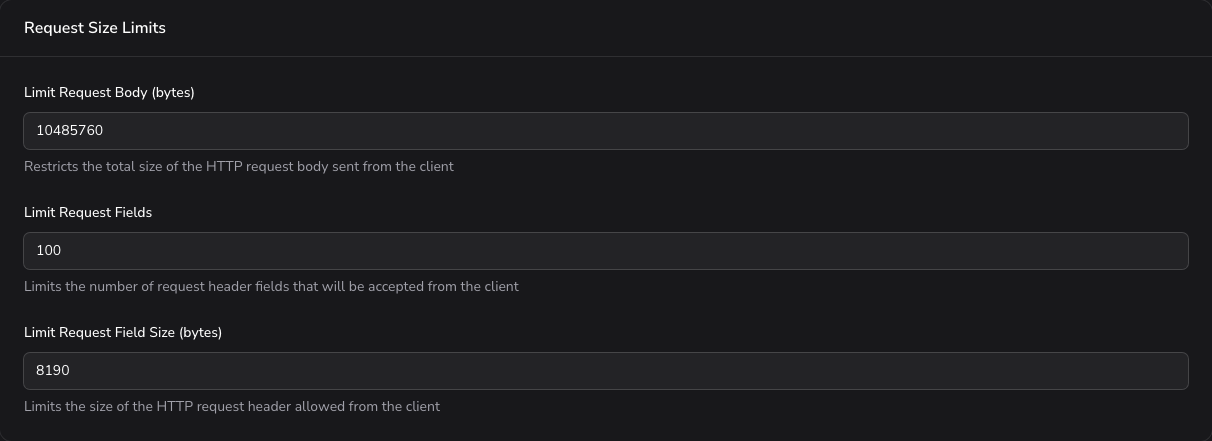

Request Limits

Limits on the size and structure of incoming client requests.

Setting	Description
Limit Request Body (bytes)	Restricts the total size of the HTTP request body sent from the client.
Limit Request Fields	Limits the number of request header fields that will be accepted from the client.
Limit Request Field Size (bytes)	Limits the size of the HTTP request header allowed from the client.

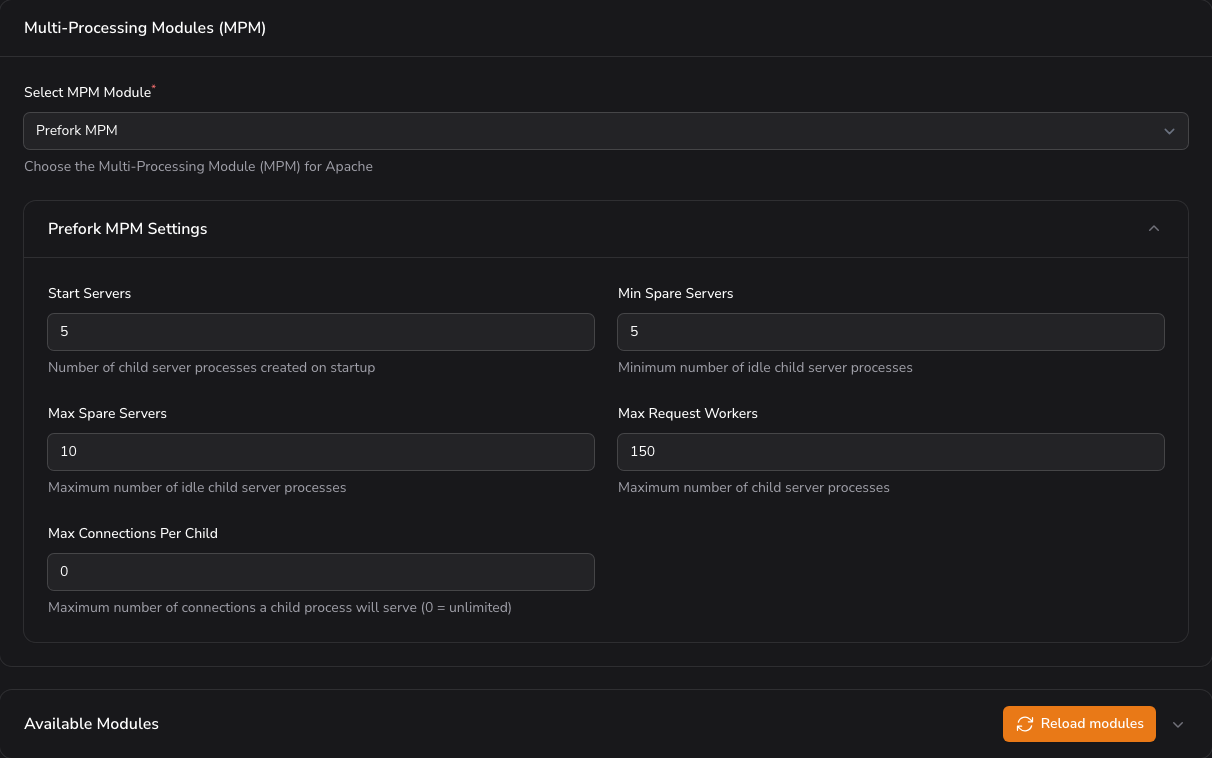

MPM and Worker Processes

Selects the Multi-Processing Module and tunes how many worker processes Apache runs. Select MPM Module is required.

Setting	Description	Options
Select MPM Module (required)	Choose the Multi-Processing Module (MPM) for Apache.	Event MPM, Prefork MPM, Worker MPM
Start Servers	Number of child server processes created on startup.	Numeric
Min Spare Servers	Minimum number of idle child server processes.	Numeric
Max Spare Servers	Maximum number of idle child server processes.	Numeric
Max Request Workers	Maximum number of child server processes.	Numeric
Max Connections Per Child	Maximum number of connections a child process will serve (0 = unlimited).	Numeric

Choosing an MPM

Event is the modern default and works best with HTTP/2 and high concurrency. Use Prefork when a site loads PHP through mod_php, since it runs one process per request and is the safe choice for modules that are not thread-safe. Worker is a threaded middle ground. With PHP-FPM (the usual setup), Event is the recommended choice.

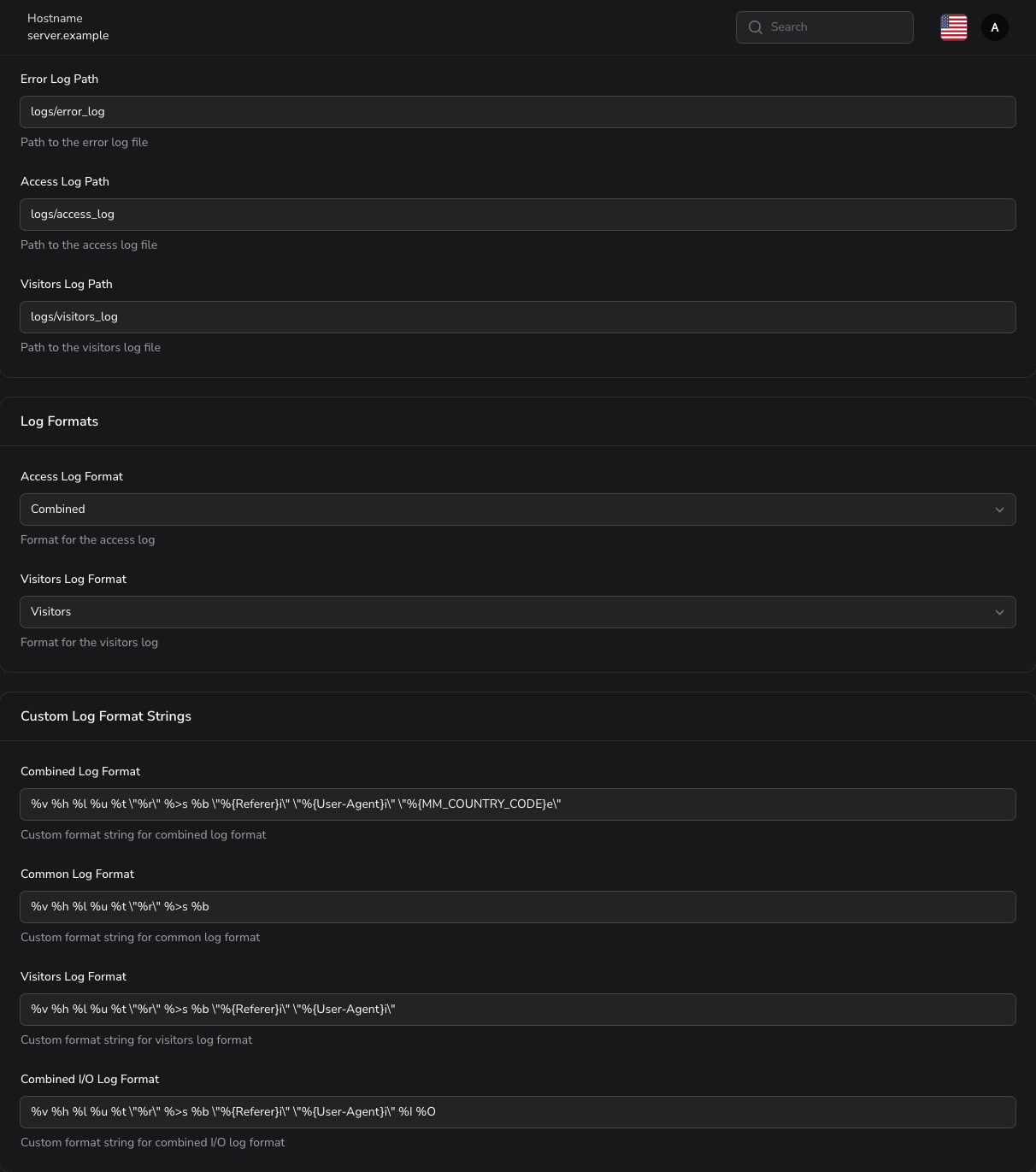

Logging Configuration

Locations, formats, and verbosity of the server log files.

Setting	Description	Options
Error Log Path	Path to the error log file.	Free text
Access Log Path	Path to the access log file.	Free text
Visitors Log Path	Path to the visitors log file.	Free text
Access Log Format	Format for the access log.	Combined, Common, Visitors, Combined I/O
Visitors Log Format (selector)	Format for the visitors log.	Visitors, Combined, Common
Combined Log Format	Custom format string for combined log format.	Free text
Common Log Format	Custom format string for common log format.	Free text
Visitors Log Format (custom string)	Custom format string for visitors log format.	Free text
Combined I/O Log Format	Custom format string for combined I/O log format.	Free text
Log Level	Level of detail for error logging.	Emergency, Alert, Critical, Error, Warning, Notice, Info, Debug, Trace 1 to Trace 8

Note: there are two Visitors Log Format controls. The selector chooses a built-in format, while the custom string field defines your own format pattern.

SSL/TLS

SSL/TLS settings appear in the Modules Configuration tab when the SSL module is enabled. They are grouped below by purpose.

Protocols and Ciphers

Setting	Description	Options
SSL Engine	Enables or disables the SSL engine.	On, Off
SSL Protocol	SSL/TLS protocols to enable.	Free text
SSL Cipher Suite	SSL cipher suites to use.	Free text
SSL Honor Cipher Order	Honors the server's cipher order preference.	On, Off
SSL Compression	Enables or disables SSL compression.	On, Off
SSL Session Tickets	Enables or disables SSL session tickets.	On, Off
SSL Insecure Renegotiation	Allows insecure SSL renegotiation.	On, Off
SSL FIPS Mode	Enables FIPS mode for SSL operations.	On/Off toggle
SSL OpenSSL Conf Cmd Curves	Elliptic curves to use for SSL connections.	Free text
SSL OpenSSL Conf Cmd Security Level	OpenSSL security level (0-5).	Numeric

Recommended TLS settings

Enable only modern protocols: set SSL Protocol to all -SSLv3 -TLSv1 -TLSv1.1 so only TLS 1.2 and 1.3 are served. Turn SSL Honor Cipher Order On, and leave SSL Compression and SSL Insecure Renegotiation Off. For SSL Cipher Suite, a current Mozilla "intermediate" cipher list is a safe default.

| SSL Random Seed Startup | Random seed source for startup. | Free text | | SSL Random Seed Connect | Random seed source for connections. | Free text |

OCSP Stapling

Setting	Description	Options
SSL Use Stapling	Enables or disables OCSP stapling.	On, Off
SSL Stapling Cache	Cache for SSL stapling responses.	Free text
SSL Stapling Response Max Age (seconds)	Maximum age for OCSP stapling responses.	Numeric
SSL Stapling Response Time Skew (seconds)	Time skew tolerance for OCSP responses.	Numeric
SSL Stapling Return Responder Errors	Returns OCSP responder errors to clients.	On, Off
SSL Stapling Fake Try Later	Sends fake "try later" responses for OCSP failures.	On, Off

Session Cache

Setting	Description	Options
SSL Session Cache	Cache for SSL sessions.	Free text
SSL Session Cache Timeout (seconds)	Timeout for SSL session cache entries.	Numeric

Proxy SSL

Setting	Description	Options
SSL Proxy Engine	Enables or disables SSL proxy functionality.	On, Off
SSL Proxy Protocol	SSL/TLS protocols for proxy connections.	Free text
SSL Proxy Cipher Suite	SSL cipher suites for proxy connections.	Free text
SSL Proxy Honor Cipher Order	Honors the proxy server's cipher order preference.	On, Off
SSL Proxy Compression	Enables or disables SSL compression for proxy connections.	On, Off
SSL Proxy Session Tickets	Enables or disables SSL session tickets for proxy connections.	On, Off
SSL Proxy Use Stapling	Enables or disables OCSP stapling for proxy connections.	On, Off
SSL Proxy Session Cache	Cache for SSL proxy sessions.	Free text
SSL Proxy Session Cache Timeout (seconds)	Timeout for SSL proxy session cache entries.	Numeric
SSL Proxy Verify	Level of SSL certificate verification for proxy connections.	None, Optional, Require
SSL Proxy Check Peer CN	Checks peer certificate common name for proxy connections.	On, Off
SSL Proxy Check Peer Name	Checks peer certificate name for proxy connections.	On, Off
SSL Proxy Check Peer Expire	Checks peer certificate expiration for proxy connections.	On, Off
SSL Proxy Insecure Renegotiation	Allows insecure SSL renegotiation for proxy connections.	On, Off
SSL Proxy Random Seed Startup	Random seed source for proxy startup.	Free text
SSL Proxy Random Seed Connect	Random seed source for proxy connections.	Free text

MaxMind / GeoIP

Geolocation database settings, available when the MaxMind module is enabled.

Setting	Description	Options
MaxMind DB Enable	Enables or disables MaxMind database functionality.	On, Off
MaxMind DB Server Name	Server name for MaxMind database lookups.	Free text
MaxMind DB Country File	Path to the MaxMind country database file.	Free text
MaxMind DB City File	Path to the MaxMind city database file.	Free text

Other Module-Related Settings

These settings appear in the Modules Configuration tab alongside their related module.

Proxy

Setting	Description	Options
Proxy Requests	Controls whether the proxy will handle requests.	On, Off
Proxy Preserve Host	Preserves the original Host header in proxied requests.	On, Off

Compression and Directory Indexing

Setting	Description
Deflate Types	MIME types to compress with deflate.
Directory Index	List of files to look for when a directory is requested.

MIME Types

Setting	Description
MIME Magic File	Path to the MIME magic file for type detection.
Types Config File	Path to the MIME types configuration file.

Server Status

Setting	Description
Status Location	URL path for the server status page.
Status Allow From	IP addresses allowed to access the status page.

User Directories

Setting	Description
User Directory	Directory to look for user-specific files.

Modules Configuration

Each module below is exposed as an on/off toggle. Enable a module to load it into Apache; disable it to unload it. Some modules reveal additional settings when enabled, documented in the sections above.

Module	Description
access_compat_module	Provides access compatibility for old directives.
actions_module	Handles actions for specific MIME types.
alias_module	Allows URL path aliasing.
allowmethods_module	Restricts HTTP methods for requests.
asis_module	Sends files to clients without modification.
auth_basic_module	Implements basic HTTP authentication.
auth_digest_module	Implements digest HTTP authentication.
authn_anon_module	Supports anonymous user authentication.
authn_core_module	Handles core authentication logic.
authn_dbd_module	Authenticates users via databases.
authn_dbm_module	Authenticates users via DBM databases.
authn_file_module	Authenticates users using plain files.
authn_socache_module	Caches user authentication info.
authnz_fcgi_module	Authentication using FastCGI.
authz_core_module	Handles core authorization logic.
authz_dbd_module	Authorizes users via databases.
authz_dbm_module	Authorizes users with DBM databases.
authz_groupfile_module	Group-based authorization.
authz_host_module	Authorizes by hostname/IP.
authz_owner_module	Authorizes by file ownership.
authz_user_module	Authorizes specific users.
autoindex_module	Generates directory listings.
brotli_module	Compresses content using Brotli.
buffer_module	Buffers data for filters.
cache_disk_module	Caches content on disk.
cache_module	Provides caching mechanisms.
cache_socache_module	Caches content in shared memory.
cgi_module	Handles CGI scripts.
cgid_module	Handles CGI scripts via daemon.
charset_lite_module	Converts character sets.
data_module	Serves inline data.
dav_fs_module	DAV for filesystems.
dav_lock_module	Provides DAV locking.
dav_module	Provides WebDAV support.
dbd_module	Database interface for modules.
deflate_module	Compresses content with DEFLATE.
dialup_module	Simulates slow connections.
dir_module	Handles the DirectoryIndex.
dumpio_module	Dumps input/output data.
echo_module	Echoes back request data.
env_module	Manipulates environment variables.
evasive20_module	Enable or disable this module.
expires_module	Controls content expiration.
ext_filter_module	Executes external filters.
filter_module	Provides filter support.
headers_module	Manages HTTP headers.
heartbeat_module	Generates heartbeat signals.
heartmonitor_module	Monitors server heartbeats.
http2_module	Provides HTTP/2 support.
include_module	Includes configuration files.
info_module	Displays server information.
lbmethod_bybusyness_module	Load balancing by busyness.
lbmethod_byrequests_module	Load balancing by requests.
lbmethod_bytraffic_module	Load balancing by traffic.
lbmethod_heartbeat_module	Heartbeat-based balancing.
log_config_module	Configures logging options.
log_debug_module	Provides debug-level logging.
log_forensic_module	Captures detailed request logs.
logio_module	Logs request input/output.
lua_module	Adds Lua scripting support.
macro_module	Enables macro definitions.
maxminddb_module	Integrates MaxMind DB.
mime_magic_module	Detects file types by content.
mime_module	Maps extensions to MIME types.
negotiation_module	Handles content negotiation.
proxy_ajp_module	Proxies AJP protocol requests.
proxy_balancer_module	Balances proxy requests.
proxy_connect_module	Proxies CONNECT method.
proxy_express_module	Express-style proxy settings.
proxy_fcgi_module	Handles FastCGI proxying.
proxy_fdpass_module	Passes file descriptors over proxy.
proxy_ftp_module	Proxies FTP requests.
proxy_hcheck_module	Performs backend health checks.
proxy_http2_module	Handles HTTP/2 proxying.
proxy_http_module	Handles HTTP proxying.
proxy_module	Enables proxy features.
proxy_scgi_module	SCGI proxy support.
proxy_wstunnel_module	Supports WebSocket tunnels.
ratelimit_module	Limits client data rates.
reflector_module	Reflects request bodies.
remoteip_module	Processes client IP addresses.
reqtimeout_module	Limits request timeouts.
request_module	Handles HTTP requests.
rewrite_module	Rewrites URLs dynamically.
security2_module	Handles advanced security configs.
sed_module	Processes streams of data.
setenvif_module	Sets environment variables based on conditions.
slotmem_plain_module	Manages plain slot memory.
slotmem_shm_module	Manages shared memory slots.
socache_dbm_module	DBM-based shared caching.
socache_memcache_module	Memcache shared caching.
socache_redis_module	Redis shared caching.
socache_shmcb_module	Shmcb shared caching.
speling_module	Fixes spelling in URLs.
ssl_module	Provides SSL support.
status_module	Displays server status.
substitute_module	Replaces response content.
suexec_module	Enable suEXEC for CGI scripts.
systemd_module	Integrates with systemd.
unique_id_module	Generates unique request IDs.
unixd_module	Handles Unix processes.
userdir_module	Serves user directories.
usertrack_module	Tracks user sessions.
version_module	Shows server version.
vhost_alias_module	Provides virtual host aliasing.
watchdog_module	Monitors server health.

Usage Preset

A predefined configuration profile selector based on your server's hosting volume:

• Low Capacity - ideal for up to 500 websites
• Moderate Capacity - supports 500 to 2,000 websites
• High Capacity - designed for 2,000 to 5,000+ websites
• Custom Settings - tailor to your specific needs

Actions

• Apply Configuration - apply the current settings to the service.

Profiles and Service Control

• Save as New Profile - save the current configuration as a reusable profile.
• Load Profile / Download Profile - restore or export a saved profile.
• Check Service Status - verify the current Apache service state.
• Reload modules - reload the Apache module list.
• Refresh - reload the current status.
• Restart - restart the Apache service.
• Close - close the settings dialog.
